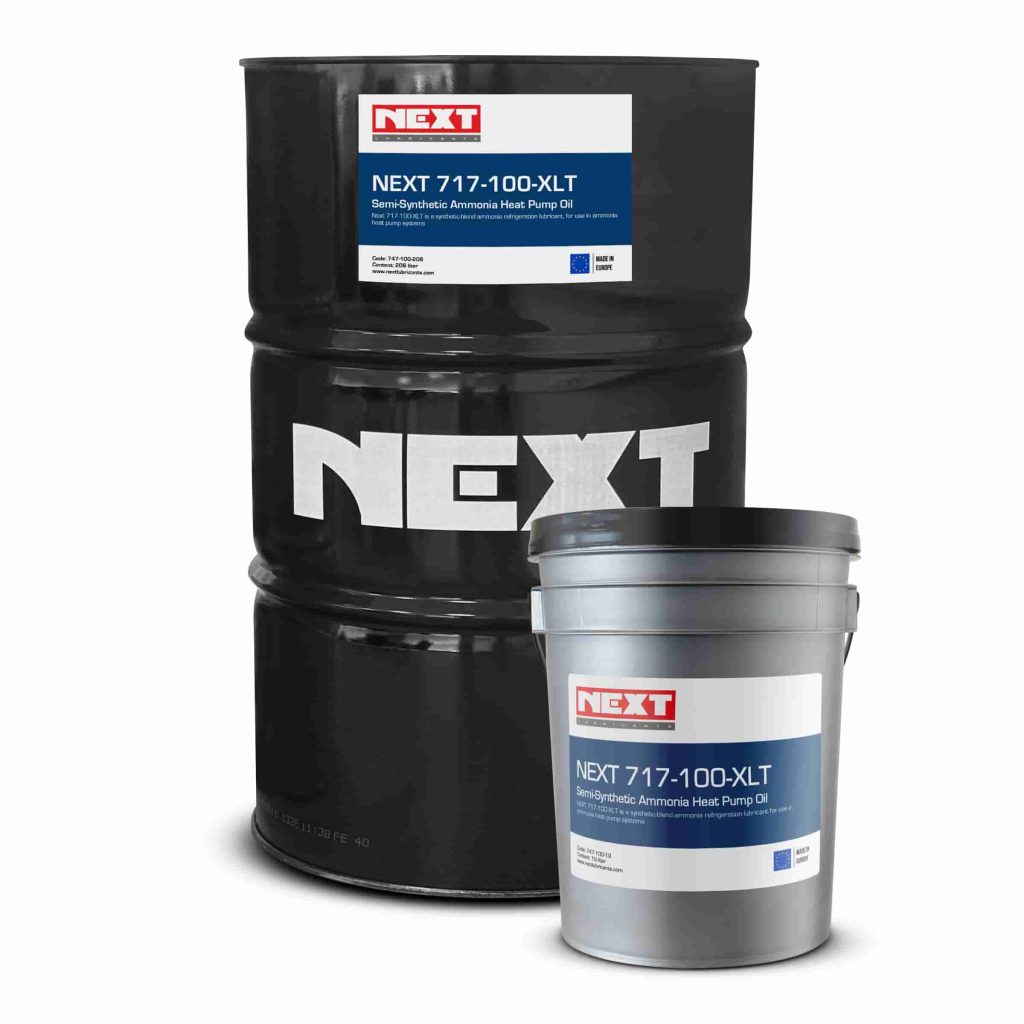

NEXT 717-100-XLT
Semi-Synthetic Ammonia Heat Pump Lubricant (Series 747)
Semi-synthetic ammonia lubricant for high-pressure ammonia heat pumps; blends highly refined mineral and synthetic base oils with anti-wear, seal conditioning, and advanced antioxidant additives for strong thermal stability, lower carryover than PAO/AB formulations, and excellent low-temperature fluidity to -45°C.
Product Overview
NEXT 717-100-XLT is a semi-synthetic ammonia lubricant for high-pressure ammonia heat pumps, combining highly refined mineral and synthetic base oils to deliver superior low-temperature fluidity, excellent seal compatibility, and lower oil carryover rates than PAO/AB and naphthenic formulations. Advanced anti-wear and seal conditioning additives maintain vital compressor and seal components under heat pump operating conditions, while advanced antioxidants and highly stable base oils provide strong protection against thermal and oxidative degradation at elevated discharge temperatures.
With a pour point of -45°C and viscosity index of 134, NEXT 717-100-XLT maintains a reliable lubricating film across the wide temperature range common to ammonia heat pump operation. It is specifically suited to systems with oil return challenges, while its semi-synthetic chemistry offers a cost-effective performance step up over conventional mineral products.
| Product Specifications | |
|---|---|
| Base Oil Type | Semi-Synthetic (Mineral + Synthetic) |
| ISO Viscosity Grade | VG 100 |
| Refrigerant | Ammonia (R-717) |
| Application | Refrigeration · Heat Pumps |
| Available Packaging | 20L · 208L · IBC |
Key Features
OEM Approved
GEA, Mayekawa (Mycom), Howden approved; meets DIN 51503 (KAA)
Low oil Carryover
Minimizes oil consumption and system contamination
Superior Low Temperature Fluidity
Increased applciation efficiency and improved oil return
Wax-Free
Clean, consistent performance without wax deposition at low temperatures
Exellent Oxidation Resistance
Prevents oil degradation and deposit formation
Technical Specifications
* Values shown are typical and may vary within specification limits. Viscosity values in mm²/s.
Technical Documents
Technical Data Sheet
Complete product specification and performance data
PDF 245KB
Safety Data Sheet
Safety Information and handeling guidelines
PDF 245KB
Product Brochure
Comprehensive product overview and applications
PDF 245KB
Packaging Options
Cross reference tool
Find your equivalent Lubricant
Use our cross-reference tool to identify NEXT Lubricants equivalent products for your compressor or industrial application.
Our technical team can help identify the right product.
