Product
Barrier PEG

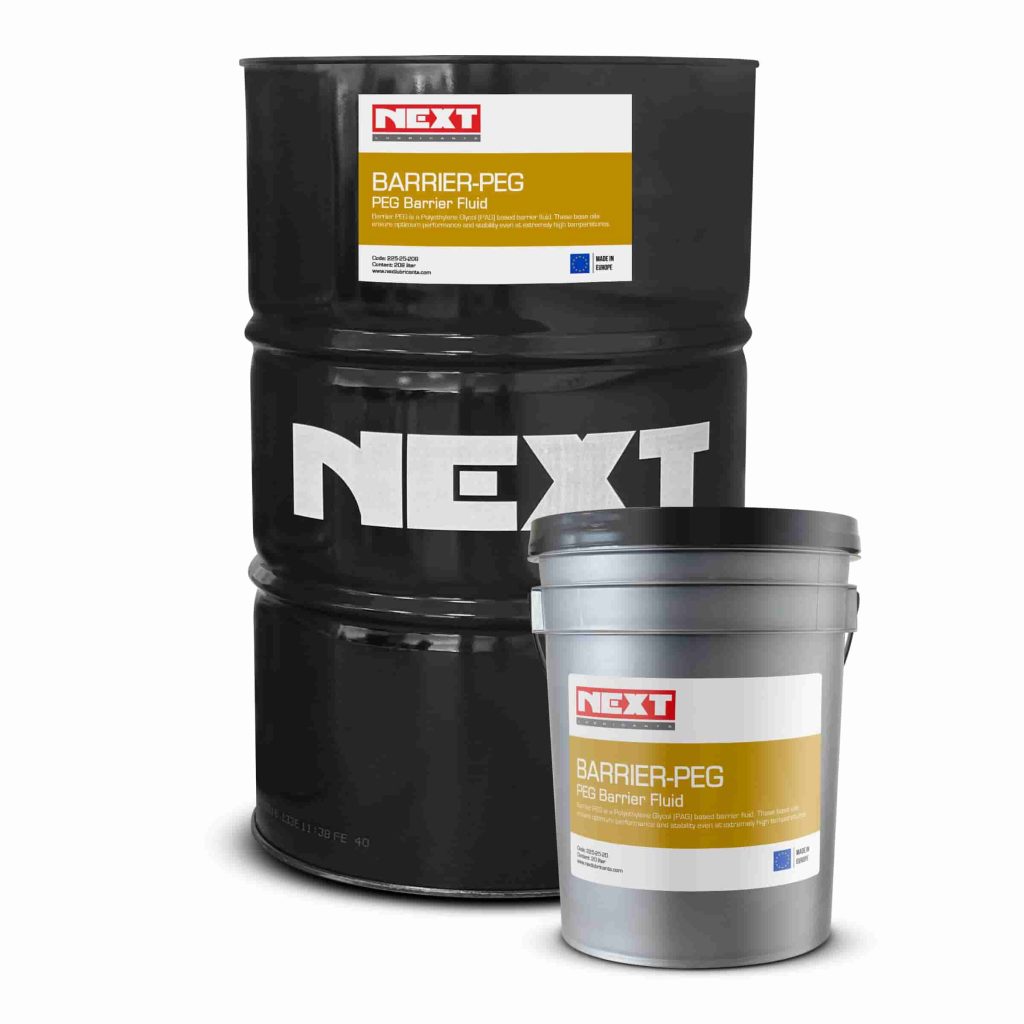

PEG Barrier Fluid (Series 225)
Pure Polyethylene Glycol barrier fluid for mechanical seals, formulated for compatibility with PEG-based compressor lubricants in gas processing applications; catalyst-safe, additive-free formulation with excellent thermal stability and very low volatility.
Product Overview
Barrier PEG is a Polyethylene Glycol (PEG) based barrier fluid for dual mechanical seal systems in gas processing and compression applications where compatibility with PEG-based process lubricants is required. Like the Barrier PAG, it is formulated without additives or impurities, making it catalyst-safe if it enters a process stream — a key requirement in ammonia, CO₂, and chemical processing applications where seal fluid contamination must be managed carefully.
The PEG base delivers excellent thermal and oxidative stability, superior lubricity, and very low volatility across its operating range. Note: Barrier PEG is not compatible with mineral oil or PAO-based lubricants — compatibility should always be confirmed before introducing it into an existing system.
| Product Specifications | |
|---|---|
| Base Oil Type | PEG (Polyethylene Glycol) |
| ISO Viscosity Grade | VG 25 |
| Temperature Range | <-50°C to +150°C |
| Application | Mechanical Seals |
| Approvals / Standards | — |
| Available Packaging | 20L · 208L · IBC |
Key Features
PEG Compatible
Fully compatible with PEG-based compressor and process lubricants
Thermal & Oxidative Stability
Maintains performance under high-temperature process conditions
Catalyst-Safe Formulation
Extremely pure, additive-free fluid safe if it enters a process stream
Excellent Wear Protection
Superior lubricity for reliable, long-life mechanical seal performance
Very Low Volatility
Minimal fluid loss in service for reduced top-up frequency
Technical Specifications
* Values shown are typical and may vary within specification limits. Viscosity values in mm²/s.
Technical Documents
Technical Data Sheet
Complete product specification and performance data
PDF 245KB
Safety Data Sheet
Safety Information and handeling guidelines
PDF 245KB
Product Brochure
Comprehensive product overview and applications
PDF 245KB
Packaging Options
Cross reference tool
Find your equivalent Lubricant
Use our cross-reference tool to identify NEXT Lubricants equivalent products for your compressor or industrial application.
Our technical team can help identify the right product.
