Product

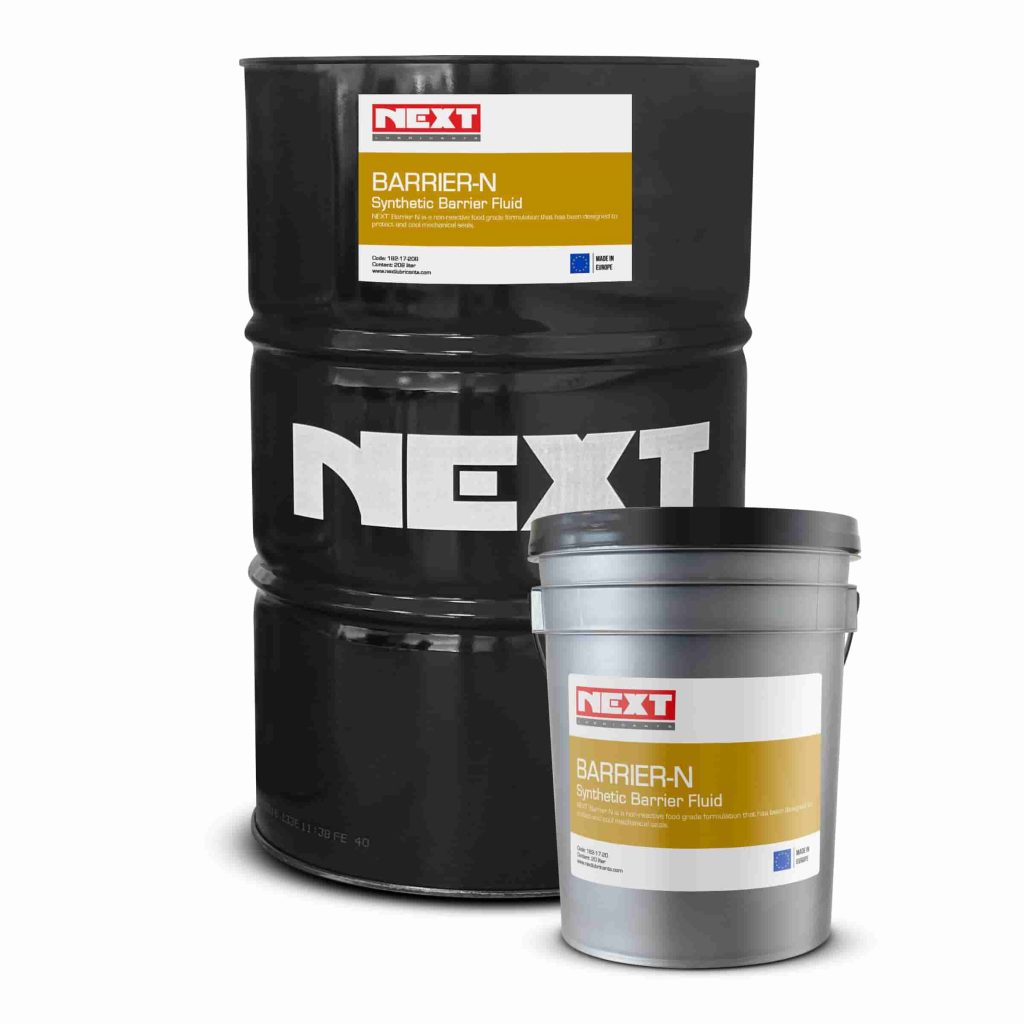

Barrier N
Synthetic Barrier Fluid (Series 182)
Product Overview
Barrier N is a nonreactive, pure synthetic barrier fluid engineered for dual mechanical seal systems across a wide range of industrial and process applications. Manufactured to the highest filtration standards, it achieves ISO cleanliness 14/13/11 — protecting seal faces from abrasive contamination while remaining fully safe if it enters a process stream. Its additive-free formulation carries NSF H1 registration under FDA 21 CFR 178.3570, making it a reliable choice wherever catalyst protection or food-grade compliance is a requirement.
The PAO base oils provide excellent thermal stability alongside outstanding cold-temperature fluidity, with pour points reaching -66°C across the grade range. This combination makes Barrier N equally capable in low-temperature process environments and higher-temperature compression service — without needing separate products for different operating windows.
| Product Specifications | |
|---|---|
| Base Oil Type | PAO (Synthetic) |
| ISO Viscosity Range | VG 5 – 60 |
| Temperature Range | -66°C to +200°C |
| Application | Mechanical Seals |
| Approvals / Standards | NSF H1 · FDA 21 CFR 178.3570 |
| Available Packaging | 20L · 208L · IBC |
Key Features
Catalyst-Friendly Formulation
Pure, additive-free synthetic fluid that remains safe if it enters a process stream
NSF H1 Food Grade
Registered under FDA 21 CFR 178.3570 for incidental food contact applications
Wide Operating Range
Pour points to -66°C with stable performance maintained up to +200°C
Highly Clean Formulation
Thoroughly filtered to ISO cleanliness 14/13/11 for maximum seal protection
Water Resistant
Resists water contamination and separates readily for straightforward condition monitoring
Technical Specifications
* Values shown are typical and may vary within specification limits. Viscosity values in mm²/s.
Technical Documents
Technical Data Sheet
Complete product specification and performance data
PDF 245KB
Safety Data Sheet
Safety Information and handeling guidelines
PDF 245KB
Product Brochure
Comprehensive product overview and applications
PDF 245KB
Packaging Options
Cross reference tool
Find your equivalent Lubricant
Use our cross-reference tool to identify NEXT Lubricants equivalent products for your compressor or industrial application.
Our technical team can help identify the right product.
